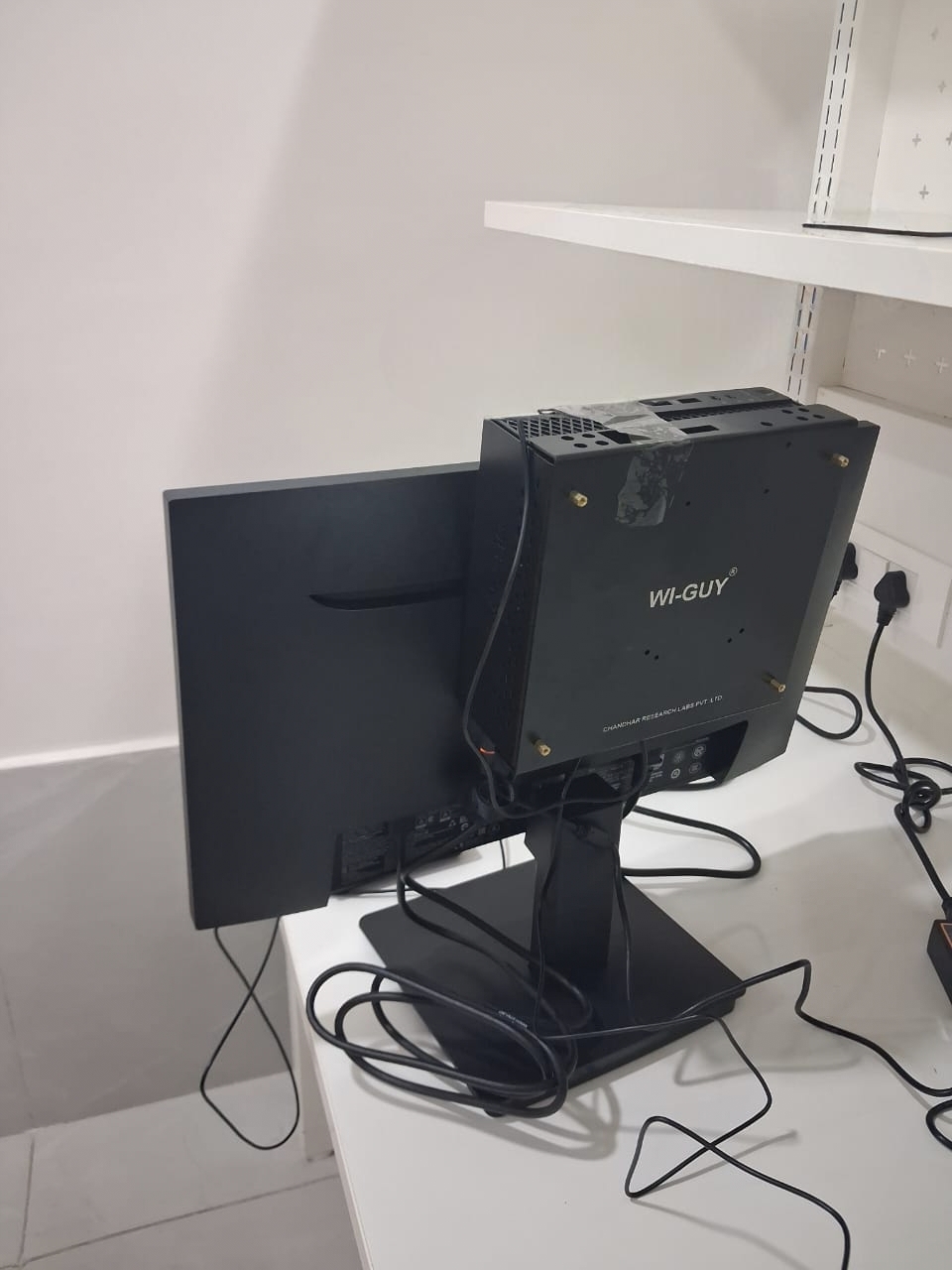

Wi-Guy

Wi-Guy® is a software defined radio based platform capable of scanning a range of electromagnetic spectrum for creating radio coverage map and decoding various type of signals transmitted by present day communication systems such as FM radio, GSM, LTE, GPS in real-time.

Moreover, Machine Learning based experiments such as RF signal classification and RF fingerprinting can be performed using Wi-Guy®.

Technical Specifications

SDR Receiver

Frequency range: 50 – 950 MHz

Max. sampling rate: 2.7 MSps

ADC: 8 bits

Max. Rx Gain: 19.2 dB

Operating temperature: 0 - 50 Deg. C

Connectivity

Wi-Fi: 2.4 GHz and 5GHz IEEE 802.11.b/g/n/ac

Bluetooth: Bluetooth 4.2

LAN: Gigabit Ethernet (Max. throughput 300 Mbps)

Video output: HDMI

USB: 4 x USB 2.0 Male and 1 USB 2.0 Female ports

Memory

RAM: 1 GB

Storage Memory: 32 GB

GPS

GPS Receiver: L1 frequency (1.5742 GHz), C/A code

GPS sensitivity: -160 dBm

Power Requirements

Input power: 5V, 2.5A

Programming Language

C++, Python
