5‑Nines Radio® – 5G Testbed¶
Why the name Five‑Nines Radio?
Five‑Nines Radio refers to a 5G radio communication system designed to achieve a high level of reliability and availability, often measured as “five nines” (99.999% uptime). The main objective is to engineer the radio system to maintain connectivity and communication capabilities with minimal downtime, ensuring reliable operation even in challenging environments or adverse conditions.
5‑Nines Radio is a high-reliability 5G testbed platform designed to build, test, and validate URLLC, eMBB, and massive M2M communication scenarios with end-to-end control across radio, core, and edge networks.
Five-Nines Radio Architecture
There are two operating modes of Five-Nines Radio:
- Five-Nines Radio – 5G Non-Stand Alone (NSA) mode
- Five-Nines Radio – 5G Stand Alone (SA) mode
In NSA mode, to establish a connection with a 5G Smartphone, one requires a 4G base station (i.e. eNB), a 5G base station (i.e. gNB), and a 4G core network (CN), i.e. evolved packet core (EPC). All control-plane traffic is handled by the eNB whereas the user-plane traffic is handled by both eNB and gNB. In contrast, SA architecture eliminates LTE dependency, with the gNB managing both control and user planes in conjunction with the 5G Core (5GC).
Table 1. Components of Five-Nines Radio
| Components | Specifications |
|---|---|
| Components | CN Emulator eNB Emulator gNB Emulator eNB/gNB Transceiver – Sub‑6 GHz 5G IoT Bridge 5G Smartphone Portable Spectrum Analyzer Five-Nines Radio Android App Programmed SIM cards |
| CN, gNB, eNB Emulator Hardware | I5/I7/I9 Processor, 1 TB HDD, 16 GB RAM |
| Protocol Stack | NSA: EPC, gNB, eNB: 3GPP Rel. 15 SA: 5G Core, gNB: 3GPP Rel. 17 |
| eNB Bandwidth | 5, 10, and 20 MHz |
| gNB Bandwidth (Sub‑6 GHz) | 5, 10, 20, and 40 MHz |
| Duplex Mode | eNB – FDD, gNB – TDD & FDD |
| Operating Band | B7 & n78 (2600 MHz & 3600 MHz) |
| MIMO Support | 1x1 (eNB), 2x2 (gNB) |
5‑Nines Radio Configurations¶
- NSA Full: CPUs: 3 (5G Core, gNB, eNB), SDR Units: 2, Smartphones: 2, IoT Bridge, Portable Specturm Analyzer, Architecture Support: 5G NSA and SA
- SA Standard: CPUs: 2 (5G Core, gNB), SDR Units: 1, Smartphones: 1, IoT Bridge, Portable Specturm Analyzer, Architecture Support: 5G SA
- SA Compact: CPUs: 1 (5G Core + gNB combined), SDR Units: 1, Smartphones: 1, IoT Bridge, Portable Specturm Analyzer, Architecture Support: 5G SA
- Lite: CPUs: 1 (5G Core + gNB emulated + UE emulated), Architecture Support: Virtualized 5G emulation
Feature Comparison¶
| Feature | NSA Full | SA Standard | SA Compact | Lite |
|---|---|---|---|---|
| Processing Units | 3 CPUs | 2 CPUs | 1 CPU | 1 CPU (Emulated) |
| SDR Units | 2 | 1 | 1 | - |
| Smartphones | 2 | 1 | 1 | - |
| IoT Bridge | 1 | 1 | 1 | - |
| gNB (5G NodeB) | NSA: Rel 15 SA: Rel. 17 |
SA: Rel. 17 | SA: Rel. 17 | SA: Rel. 17 |
| eNB (LTE NodeB) | 1 | – | – | – |
| Portable Spectrum Analyzer | 1 | 1 | 1 | - |
| Five-Nines Radio Android App | 1 | 1 | 1 | - |
| Operating Frequency Band | NSA: B7 & n78 (2600 MHz & 3600 MHz) SA: n78 (TDD) & n7 (FDD) |
n78 (3600 MHz) | n78 (3600 MHz) | – |
| eNB Bandwidth | 5, 10, 20 MHz | – | – | – |
| gNB Bandwidth (Sub‑6 GHz) | 5, 10, 15, 20, 25, 30, 40 MHz | 5, 10, 15, 20, 25, 30, 40 MHz | 5, 10, 15, 20, 25, 30, 40 MHz | - |
| Duplexing Mode | eNB: FDD gNB: TDD & FDD |
gNB: TDD & FDD | gNB: TDD & FDD | - |
| MIMO Support | 2×2 | 2×2 | 2×2 | - |
| Typical Range | 70 ft (LoS) 30 ft (NLoS) |
70 ft (LoS) 30 ft (NLoS) |
70 ft (LoS) 30 ft (NLoS) |
- |
| Programmed SIM Cards | 5 | 5 | 5 | - |
| 3GPP Release Support | Rel. 15 (NSA) Rel. 17 (SA) |
Rel. 17 | Rel. 17 | Rel. 17 |
Features
The main features of Five-Nines Radio are as follows.
- Affordable for academic institutions
- User-friendly handling for faculty members and students
- Highly scalable
- Assured long-term technical and research support
Moreover, the Five-Nines Radio is designed to support:
- Industry-relevant experiments
- 5G protocol testing
- 5G research and development
- Student projects in academia
- Build product prototypes
Sample Academic Experiments¶
- Module 1: 5G Core & UE Procedures:
- UE registration and PDU session establishment (SA & NSA)
- 5G authentication and security

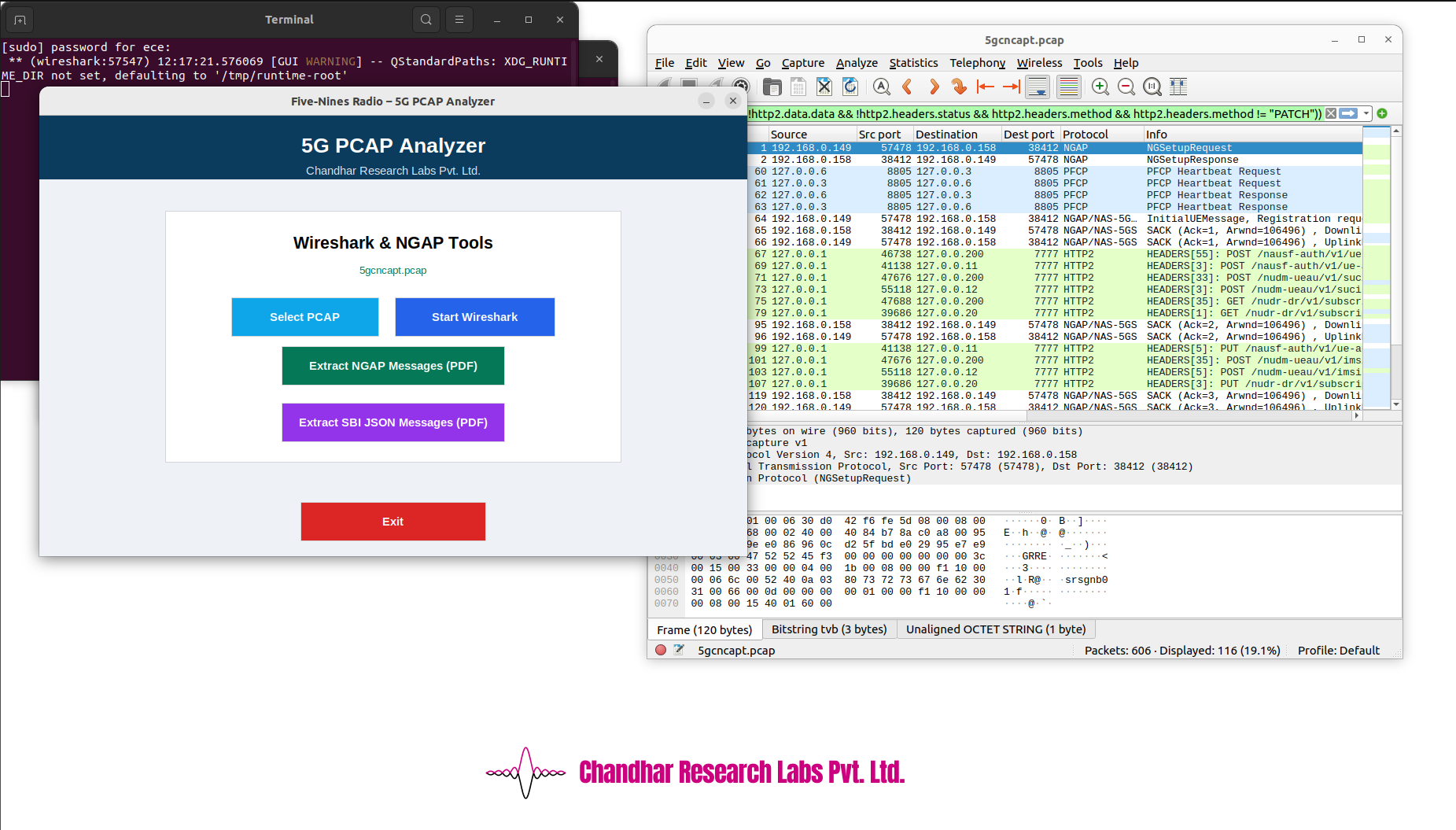

- SBA traffic flow analysis using PCAP and REST APIs
- NGAP and PFCP message tracing
- Module 2: 5G RAN Protocol Stack
- DU–CU split architecture

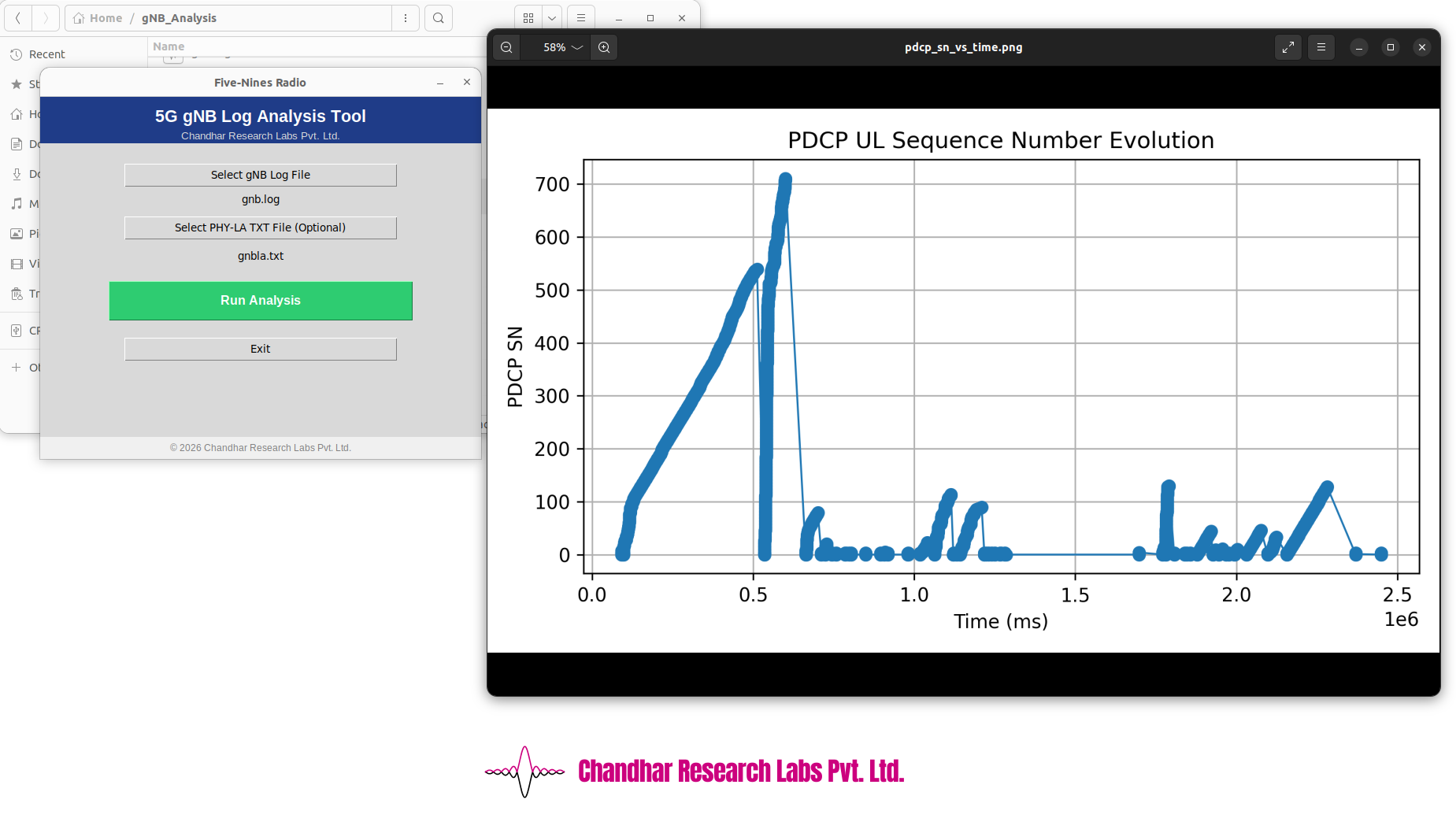

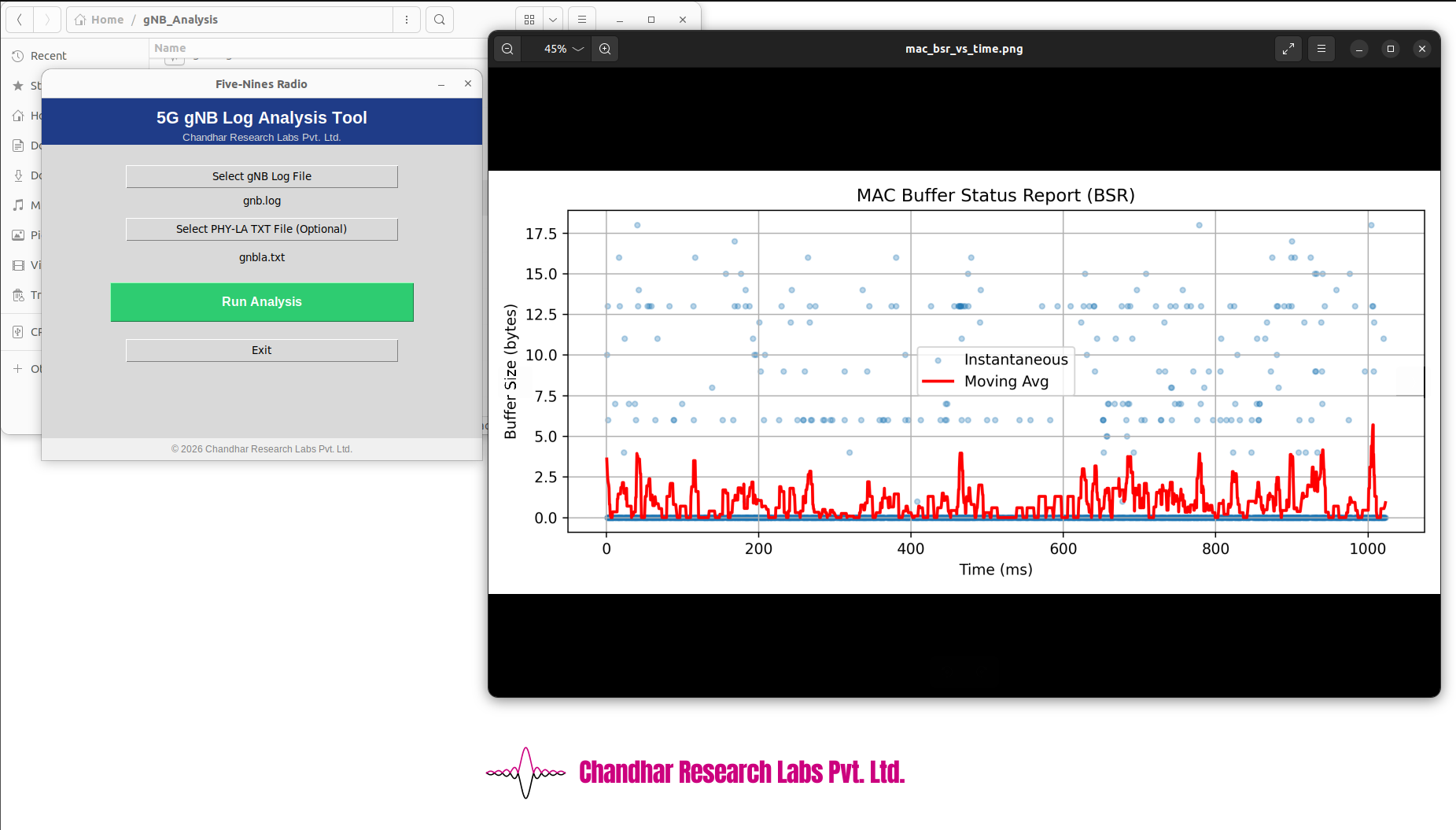

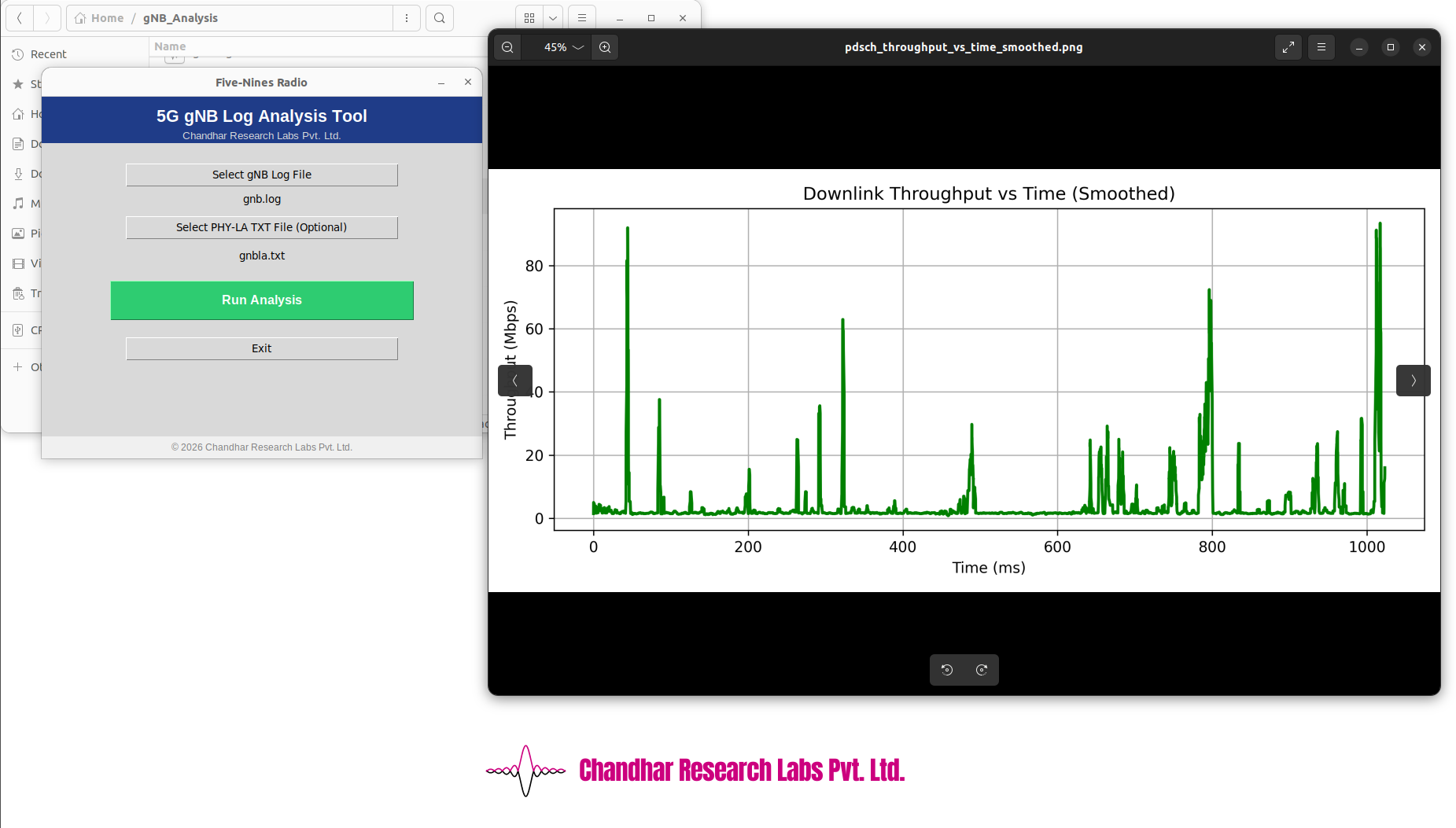

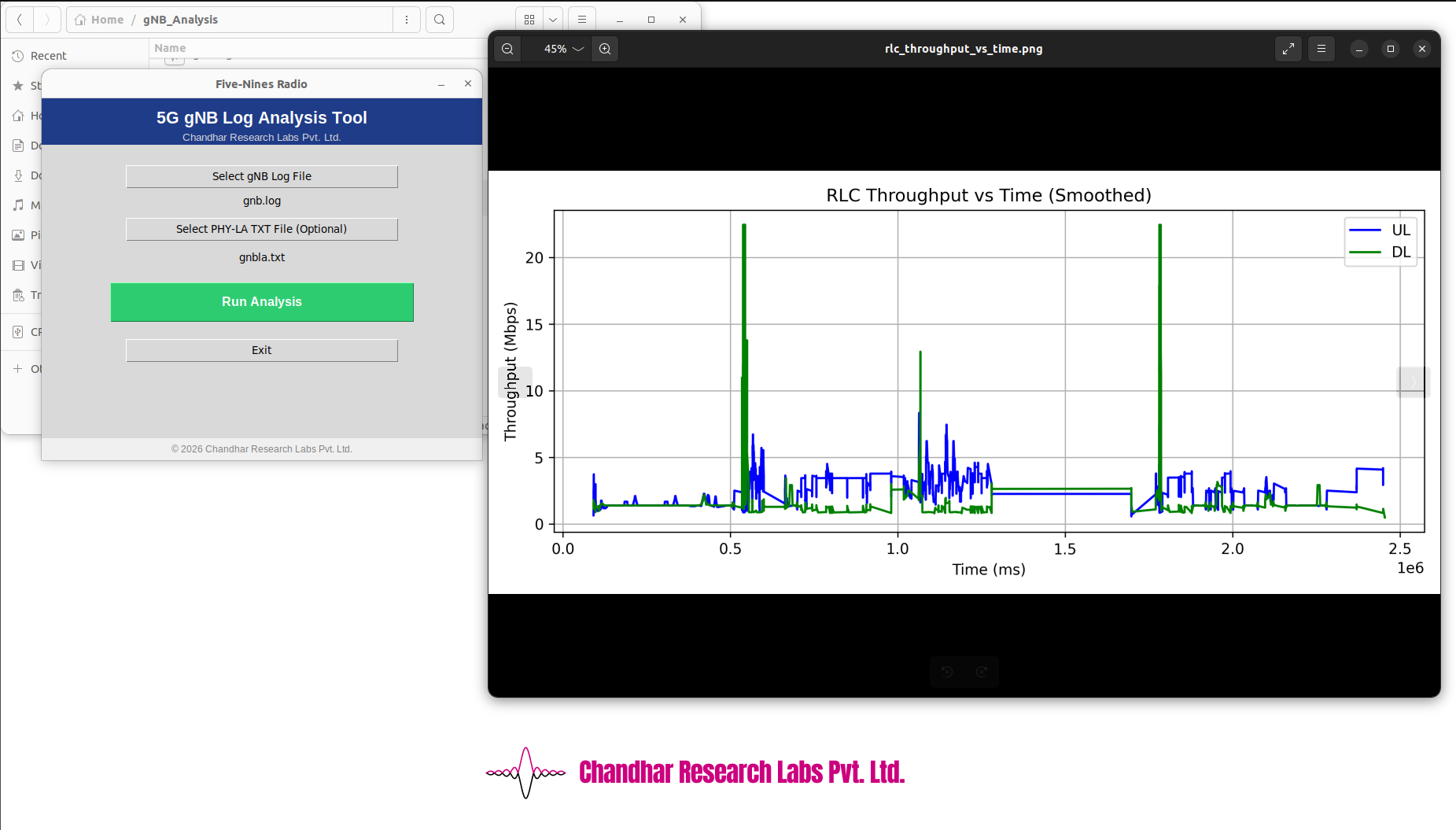

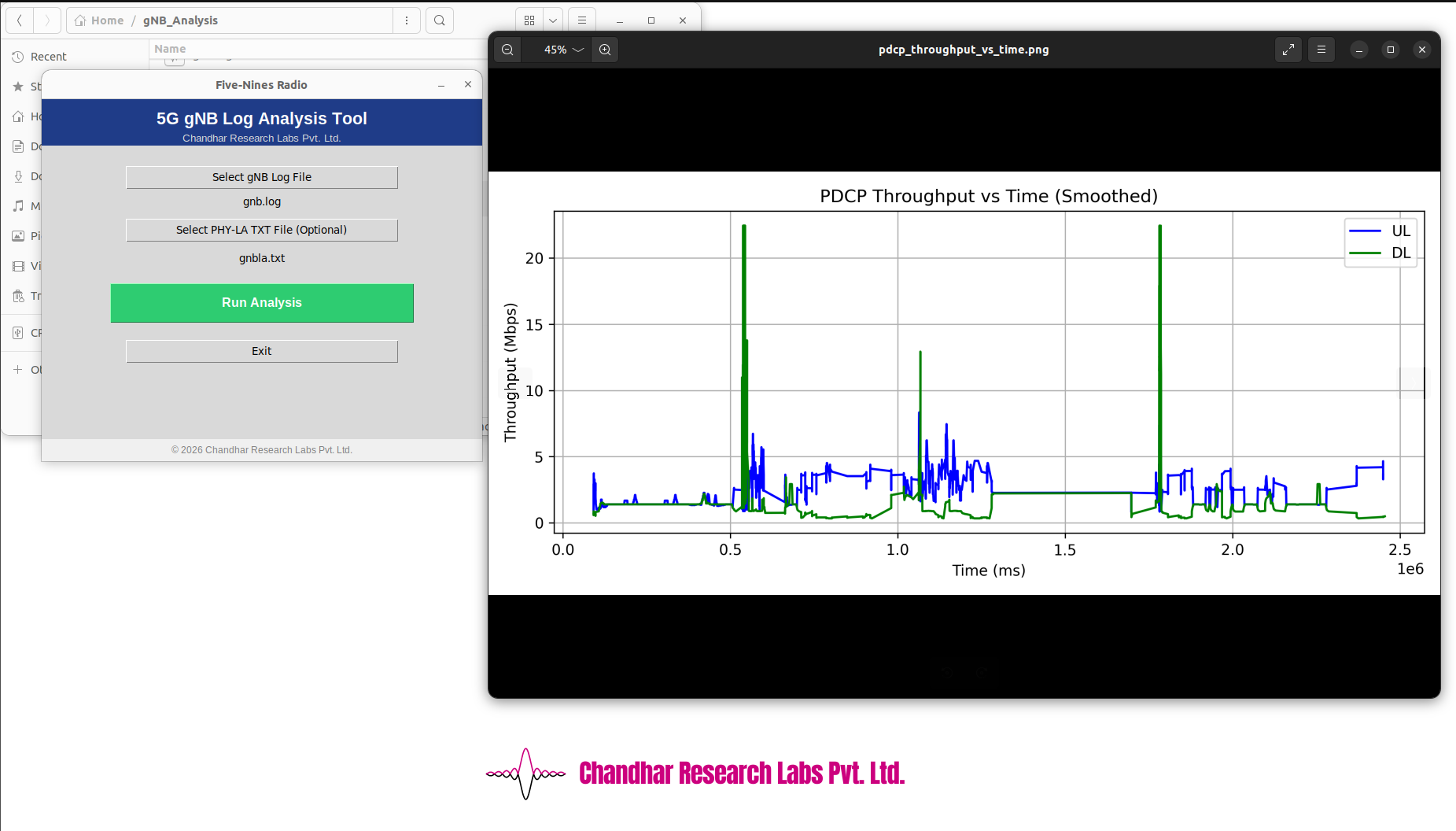

- Layer‑wise tracing (SDAP/PDCP/RLC/MAC/PHY)
- Module 3: 5G Physical Layer
- OFDM, PDSCH, DMRS waveform generation
- Uplink and downlink channel characterization
- Module 4: Performance Optimization
- Network slicing (eMBB, URLLC, mMTC)

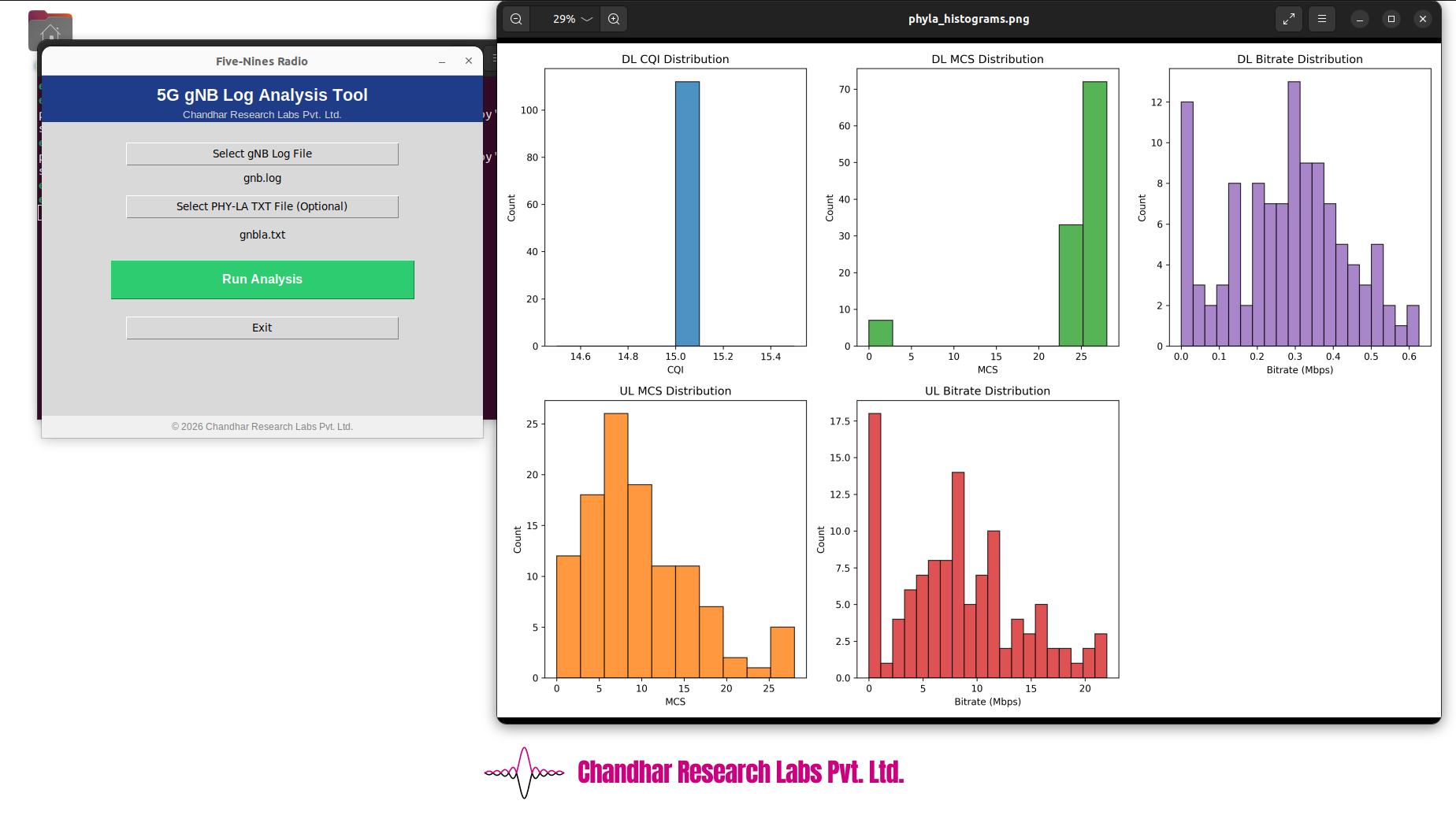

- Link adaptation and CQI feedback
- TDD slot configuration impact
- SISO vs 2×2 MIMO performance
- Module 5: 5G + IoT + Edge
- Raspberry Pi with 5G modem
- MQTT‑based IoT communication
- Machine‑type communication using dual 5G bridges
Support
-
Training: Training every six months for three years at either customer premises or Chandhar Research Labs. Support to faculty members in drafting lab, skilling, and tutorial manual for the proposed experiments will be provided.
-
Internships: Internship opportunities will be provided for eligible UG and PG students in Wireless Communications, 5G, IoT, and RF Machine Learning. The selected students will be assigned to work on the following topics ranging from 2 to 6 months.
-
FDPs: We will provide support to organize faculty development programs in topics such as AI/ML in wireless, 5G, and 6G.
-
Research Collaboration: Faculty members, UG and PG students, and research scholars can collaborate with Chandhar Research Labs on the development of 5G use cases including standard development and research publication in conferences and journals.

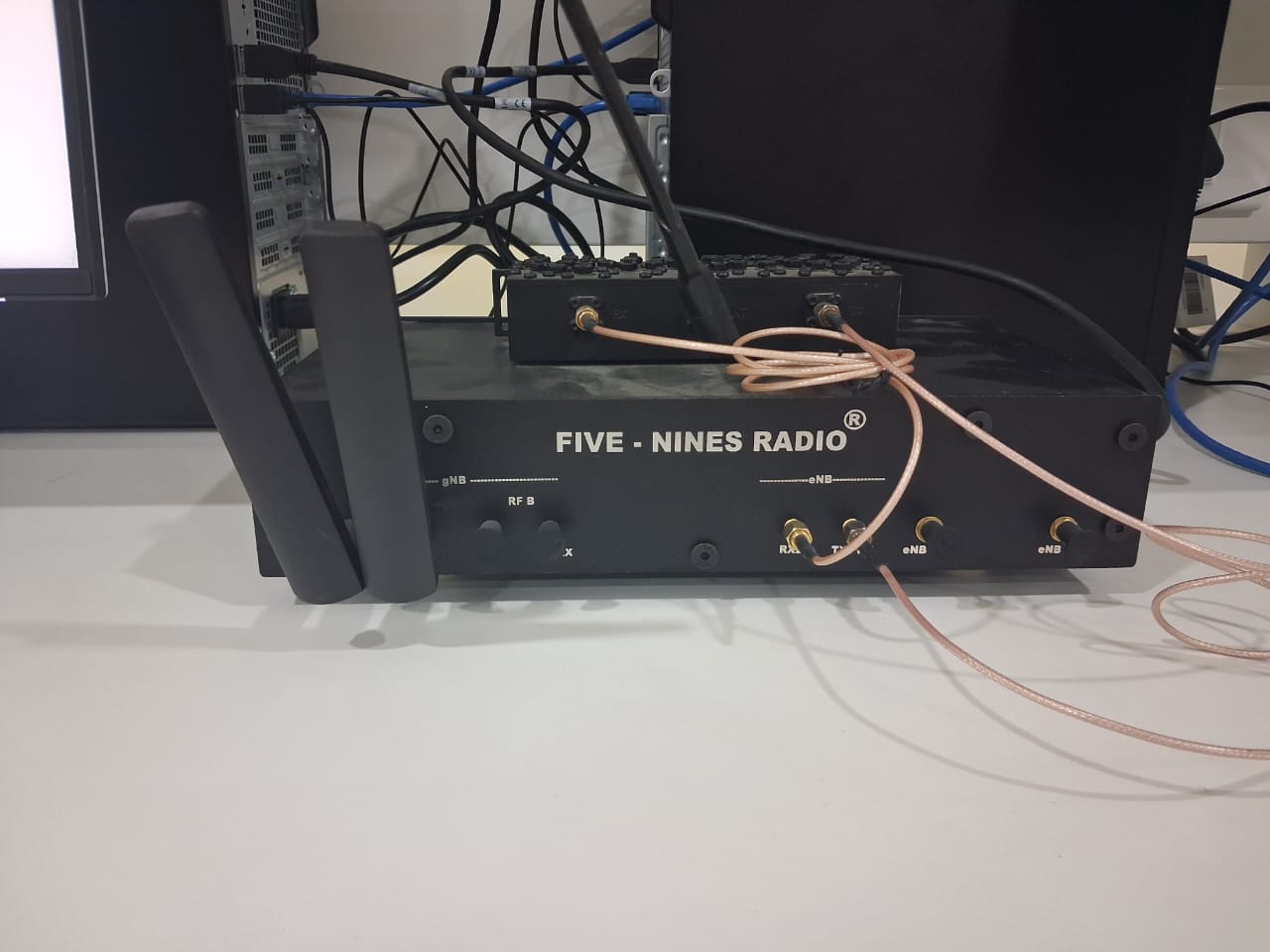

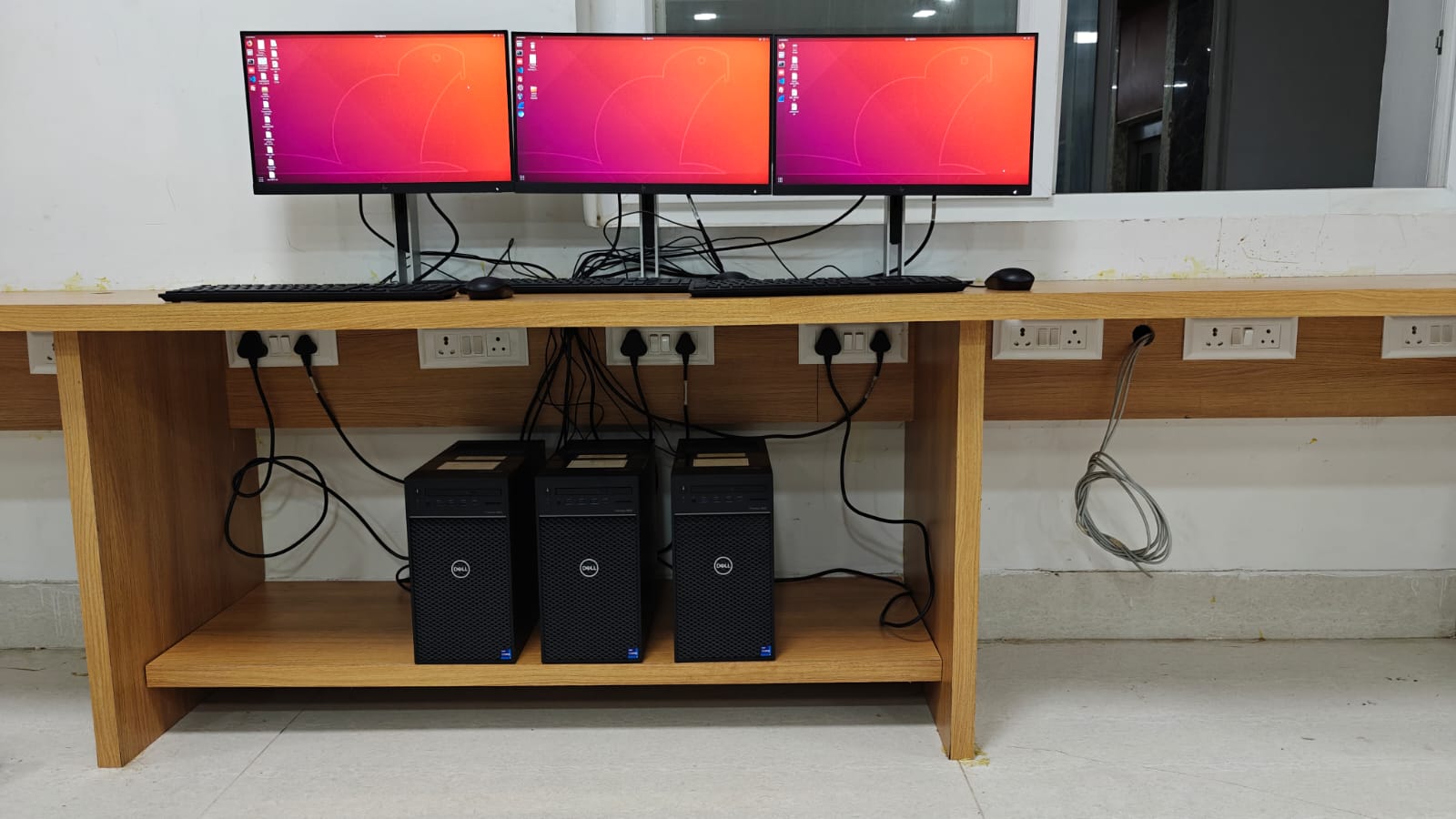

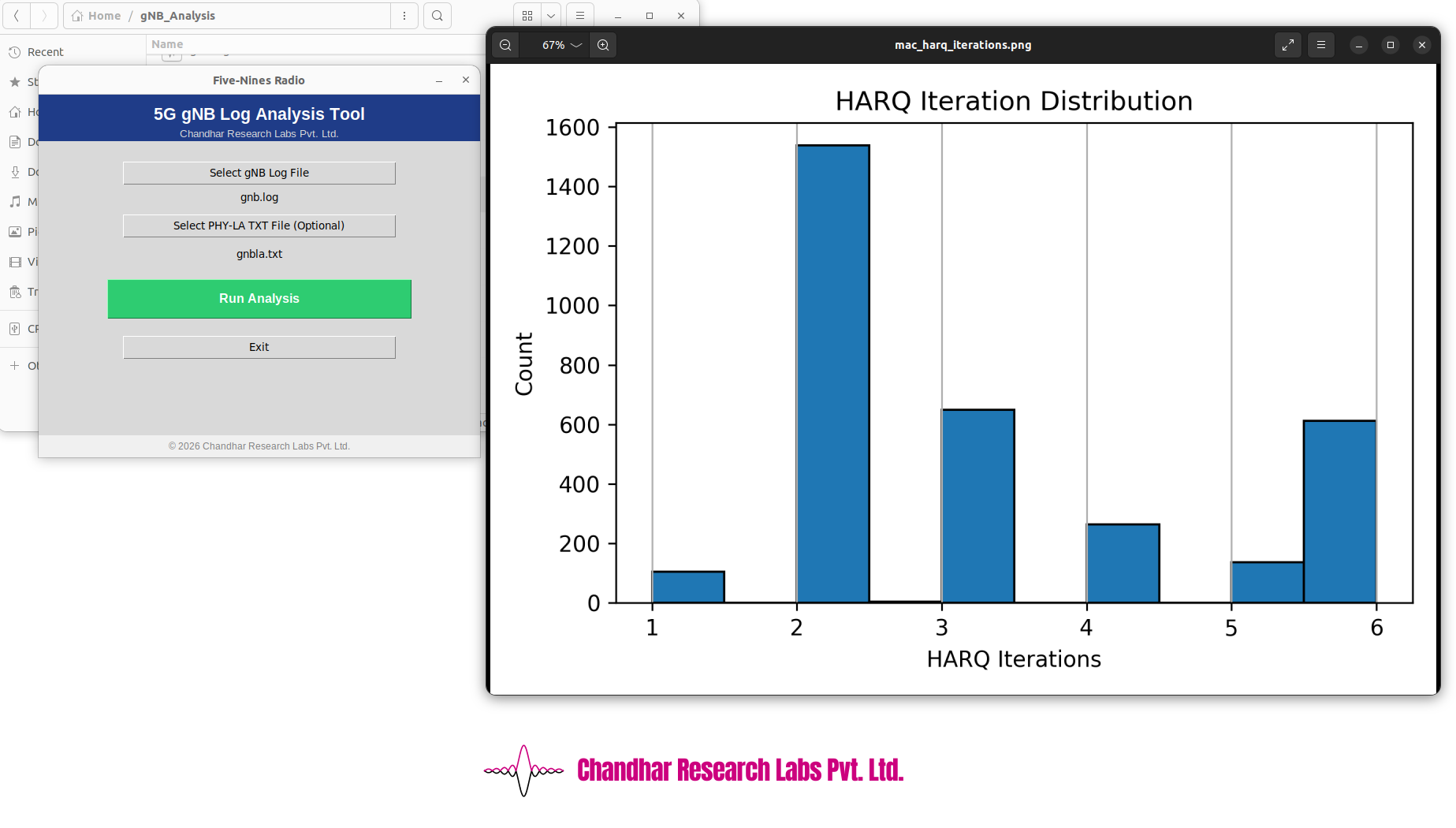

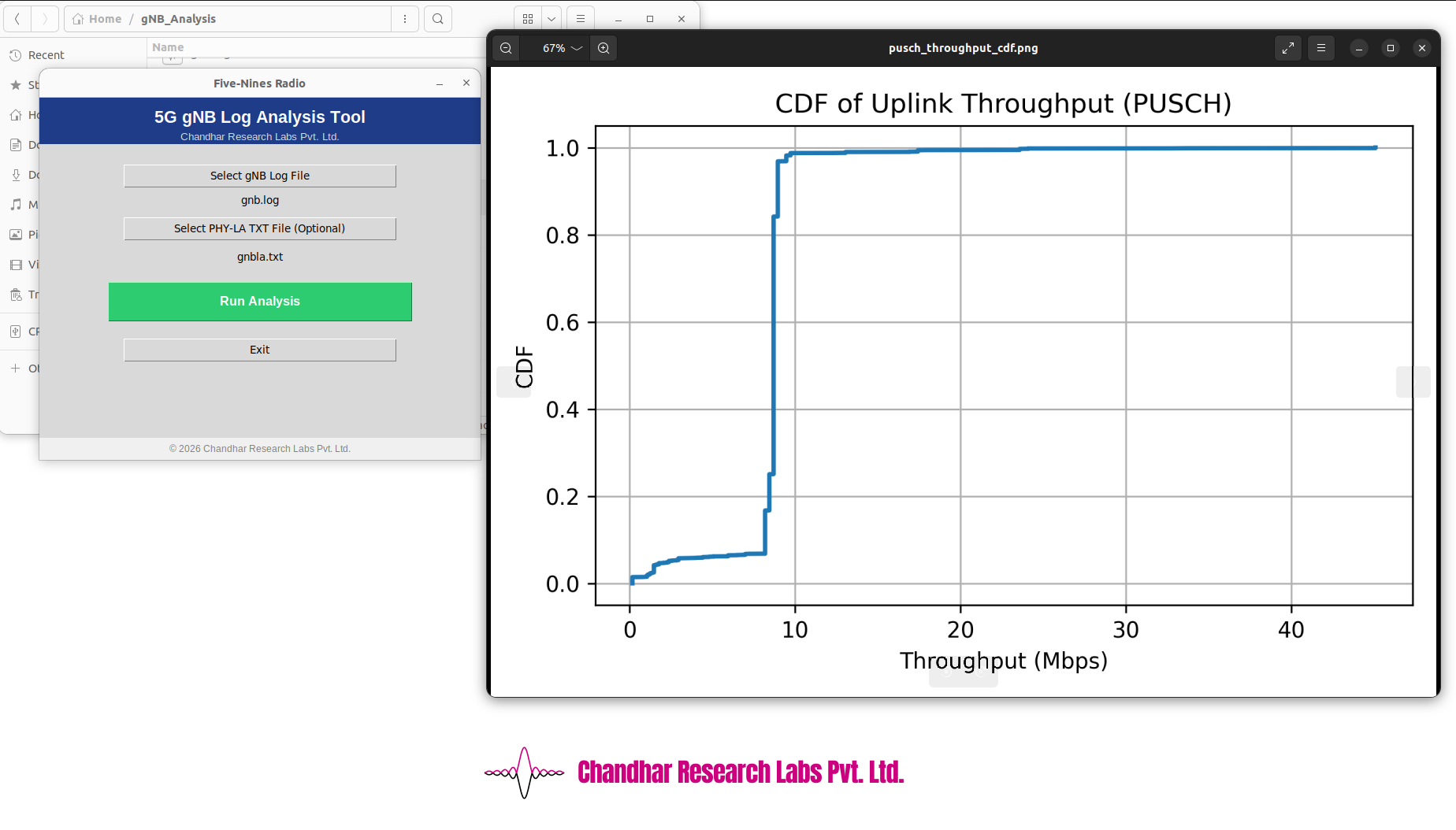

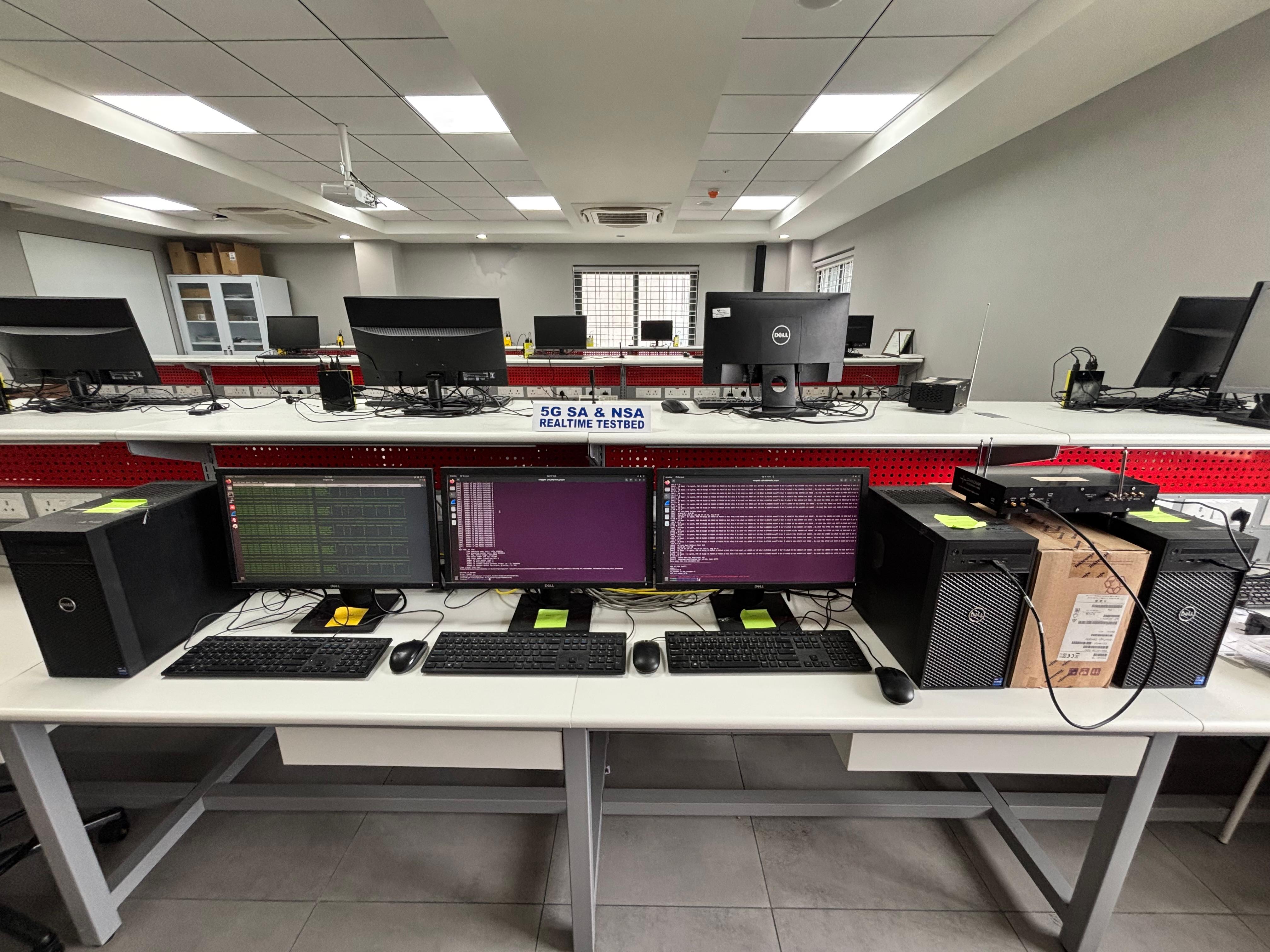

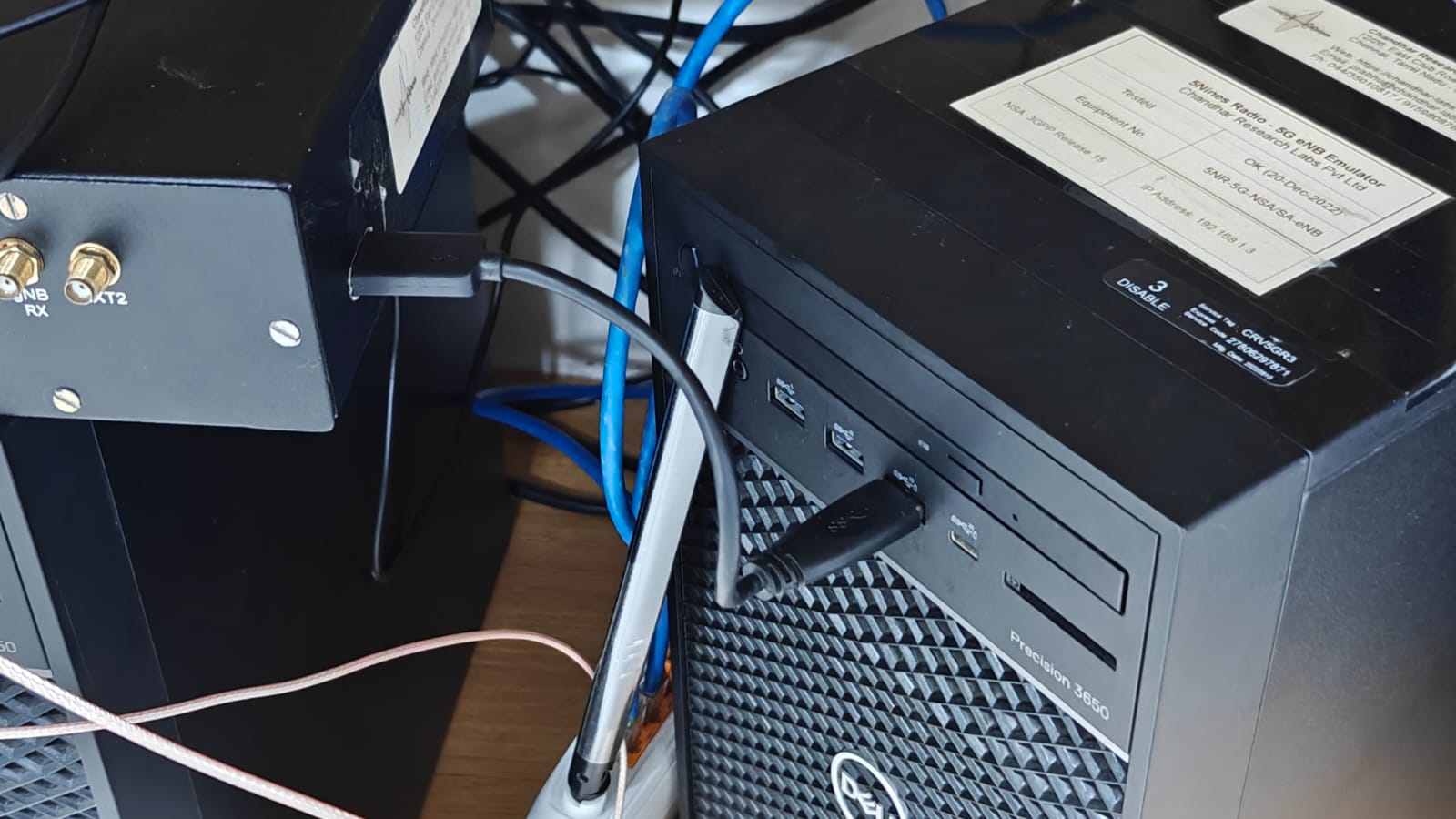

Product¶
Click on images to view larger.
Videos¶
To buy
For purchase, pricing, and demos, contact:
Email: info@chandhar-labs.com
Kindly mention the product name in your message.
